Tpye of Battery

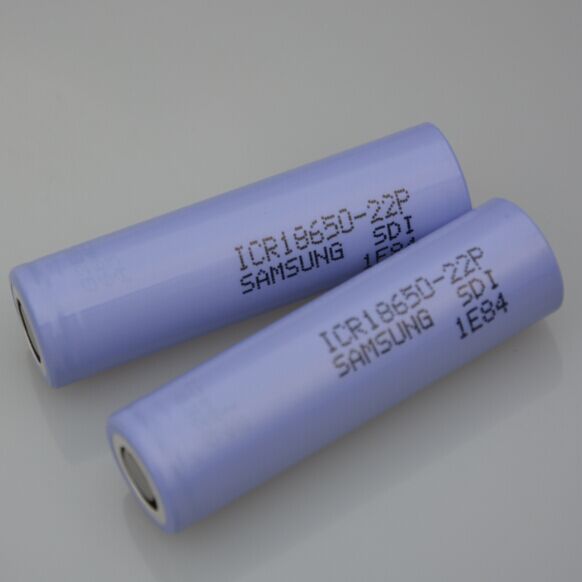

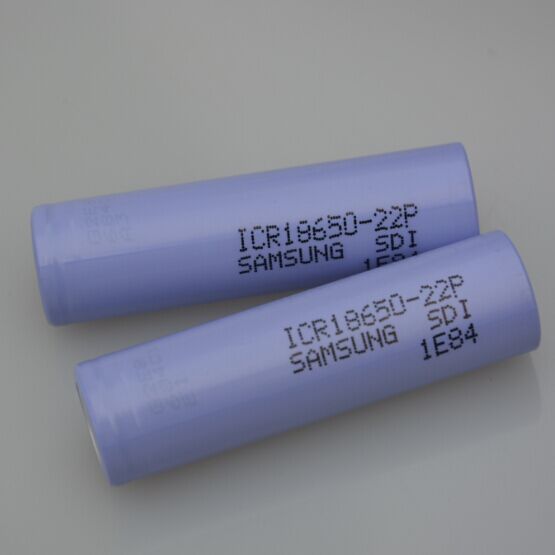

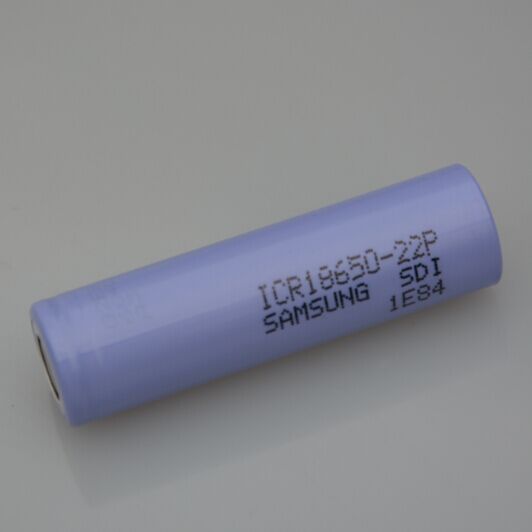

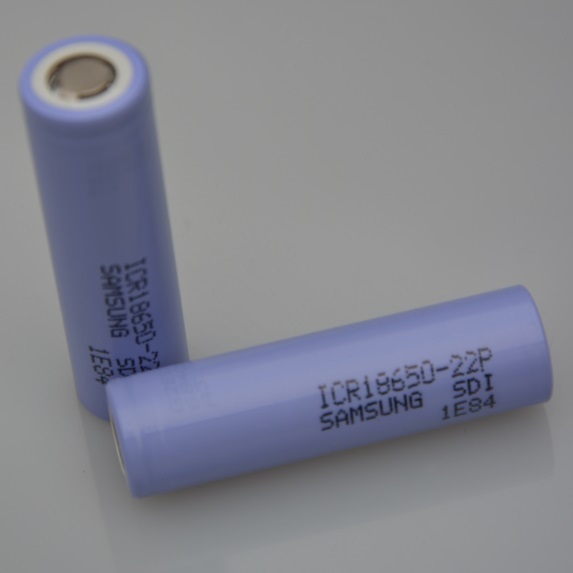

INR18650-22PM  / INR18650-22P

Size(mm)

18.4mm(Diameter) x 65mm(Length)

Positive  Pole

Flat top

Weight(g)

45±1.5g

Nominal Voltage

3.6V

Nominal  Capacity

2200mah(0.2 C Discharge)

Discharge Cut-off voltage

2.75 V

Standard Charge

1 A /4.2V±0.05V

Maximum charge current

2 A

Continuous maximum

Discharge Current

10 A

Cycle Life

310times: discharging capacity≥85%

Charging Time

Standard charge : 3hours

Rapid charge : 1hours

Operating environment

Charging, 0°C ~ 45°C ;  65±20%RH

Discharging, -20°C~60°C ;  65±20%RH

Storage environment

Temp(-20°c -35°c)  / Relative humidity (45-75%)

Minimum Order Quantity

10 Piece

Application

electrical tools ，flashlight，Electronic cigarette

Specifications

1)High capacity,the true capacity

2) Auto Protection function: short circuit, over-charging, and over-discharging

3) High discharge current, discharge voltage stability
