Tpye of Battery
|

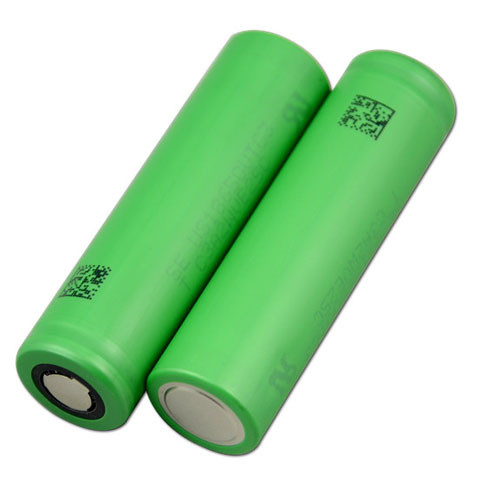

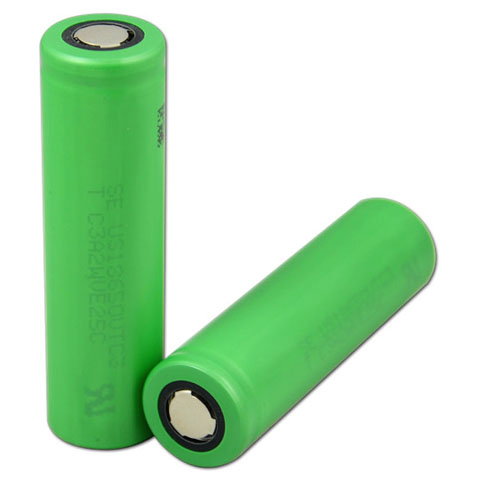

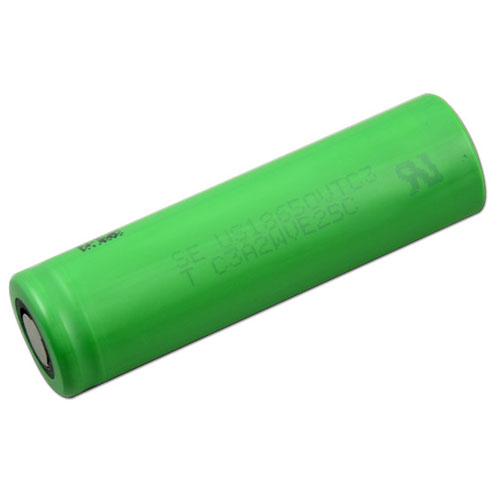

US18650VTC3 Rechargeable battery
|
Size(mm)
|
18.35mm(Diameter) x 65.1mm(Length)
|
Positive Pole
|
Flat top
|
Weight(g)
|
45±1.5g
|
Nominal Voltage
|
3.7V
|
Nominal Capacity
|
1600mah(0.2 C
Discharge) 5.92Wh
|
Rated Capacity
|
1520mah(0.2 C
Discharge) 5.58Wh
|
Capacity 2
|
Discharge at 10A ,capaticy2:1517mAh or more
|
Internal
Impedance
|
12mΩ
|
Discharge
Cut-off voltage
|
2.5 V
|
Standard
Charge
|
1.5 A /4.2V
|
Continuous
maximum
Discharge Current
|
30A
|
Cycle Life
|
310times: discharging
capacity≥85%
510times: discharging
capacity≥60%
|
Charging Time
|
Standard charge : 3hours
Rapid charge : 2 hours
|
Operating environment
|
Charging, 0°C ~ 45°C ; 65±20%RH
Discharging, -20°C~60°C ; 65±20%RH
|
Storage environment
|
Temp(-20°c -35°c) / Relative humidity (45-75%)
|
Minimum Order Quantity
|
10 Piece
|
Application
|
electrical tools ,flashlight,Electronic cigarette
|
