Tpye of Battery

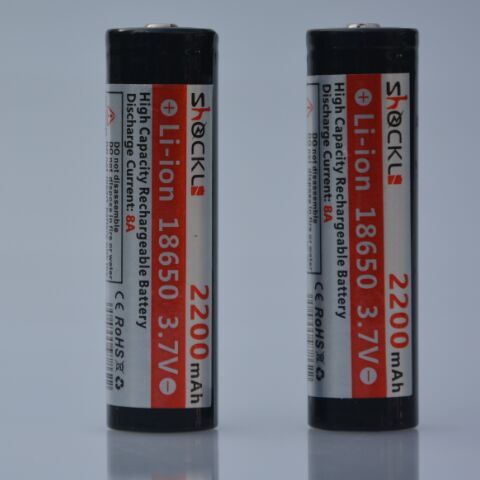

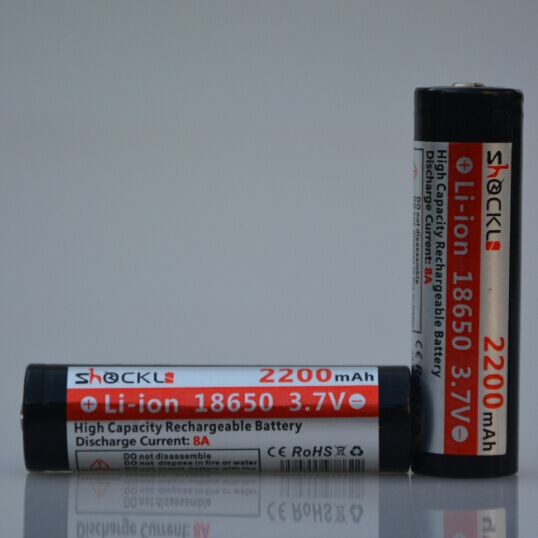

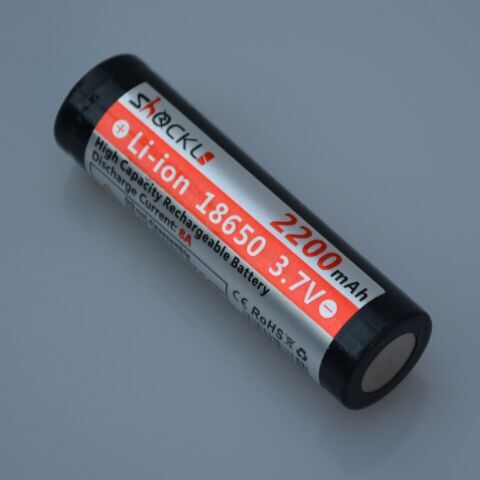

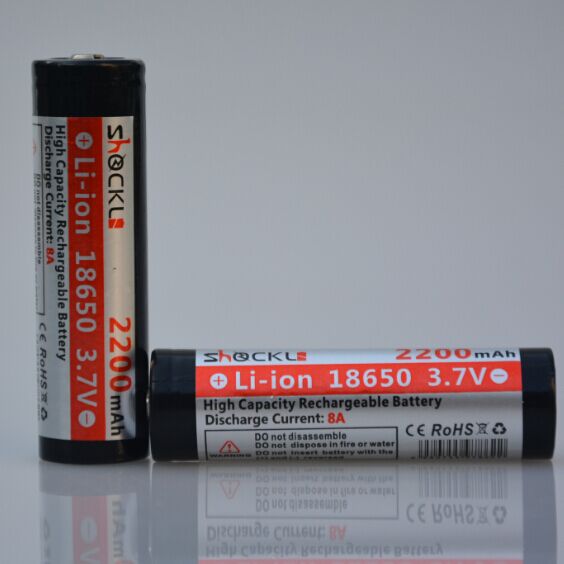

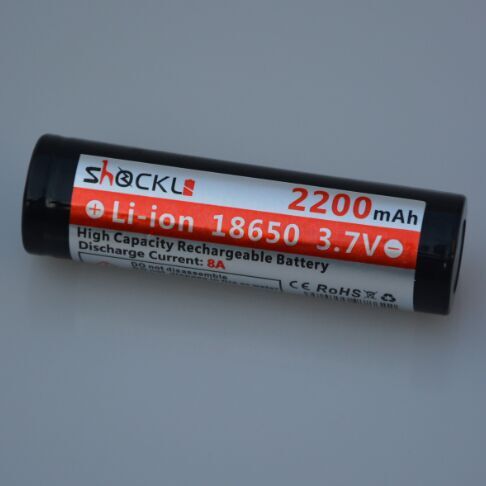

Shockli 18650 2200mah Li-ion battery

Size(mm)

18.2mm(Diameter) x 66mm(Length)

Weight(g)

45±1g

Nominal Voltage

3.7V

Nominal  Capacity

2200mah (1A  Discharge)

Discharge Cut-off voltage

2.75 V

Standard Charge

0.5 A /4.2V±0.05V (Recommend 1.0A)

Maximum charge current

1.0A

Continuous

Discharge Current

8A

Pulse

Discharge Current

10A

Initial Impedance

＜60 mW

Cycle Life

500times: discharging capacity≥60%

Charging Time

Standard charge : 3hours

Rapid charge : 2hours

Operating environment

Charging, 0°C ~ 45°C ;  65±20%RH

Discharging, -20°C~60°C ;  65±20%RH

Storage environment

Temp(-20°c -35°c)  / Relative humidity (45-75%)

Minimum Order Quantity

10 Piece

Application

Flashlight
