Tpye of Battery

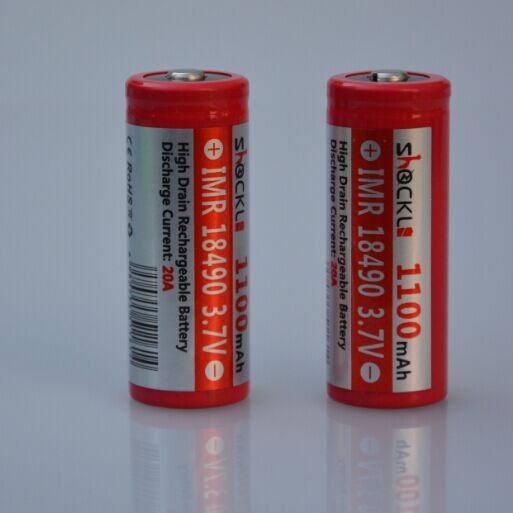

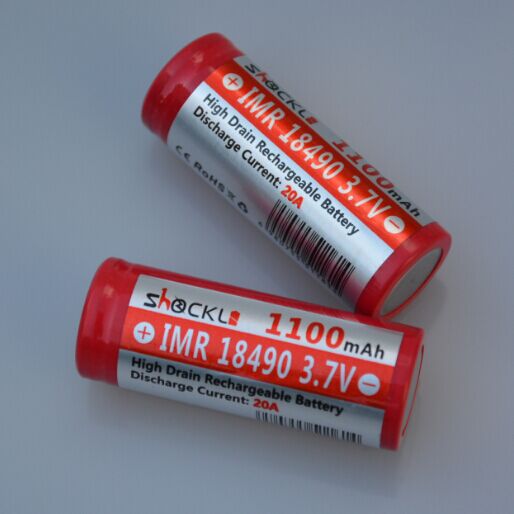

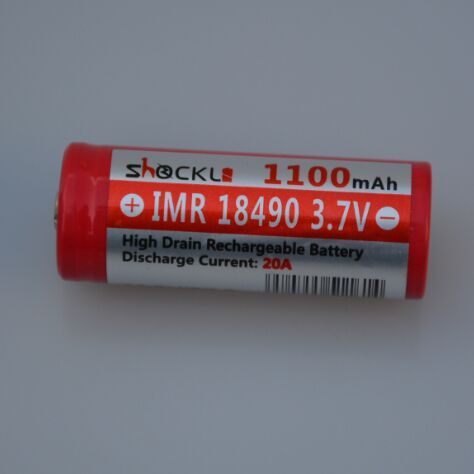

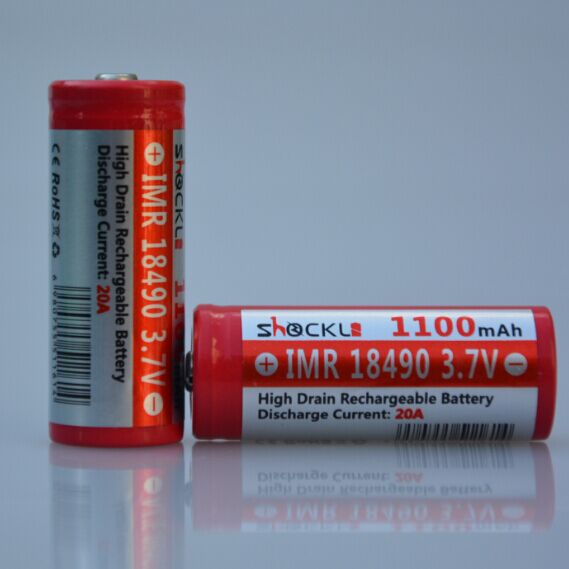

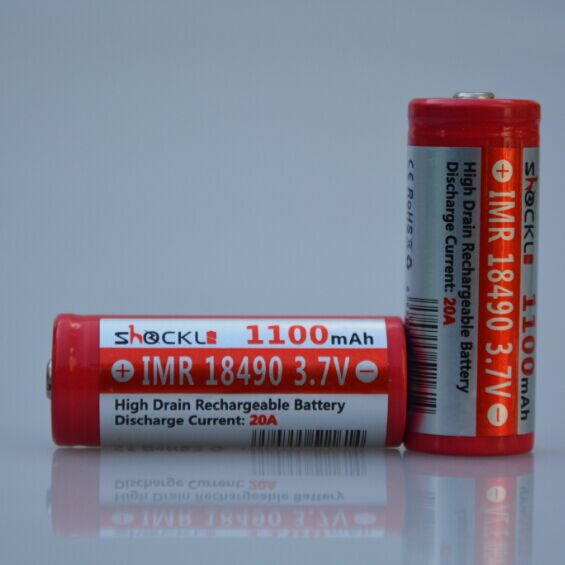

Shockli 18490 1100mah IMR battery –Button top

Size(mm)

18.3mm(Diameter) x 49mm(Length)

Weight(g)

31±1g

Nominal Voltage

3.7V

Nominal  Capacity

1100mah (1A  Discharge)

Discharge Cut-off voltage

2.75 V

Standard Charge

0.5 A /4.2V±0.05V  (Recommend 0.5A)

Maximum charge current

1.0 A

Continuous

Discharge Current

15A

Pulse

Discharge Current

20A

Initial Impedance

＜18 mW

Cycle Life

500times: discharging capacity≥60%

Charging Time

Standard charge : 3hours

Rapid charge : 1hours

Operating environment

Charging, 0°C ~ 45°C ;  65±20%RH

Discharging, -20°C~60°C ;  65±20%RH

Storage environment

Temp(-20°c -35°c)  / Relative humidity (45-75%)

Minimum Order Quantity

50 Piece

Application

Electronic cigarette,Flashlight
