21700 / 26650 For E-cig

Shockli 26650 5200mah IMR 30A discharge -Flat top
Price: US $
Product feedback

Read HKJ review of the cell here

Product introduction

Tpye of Battery

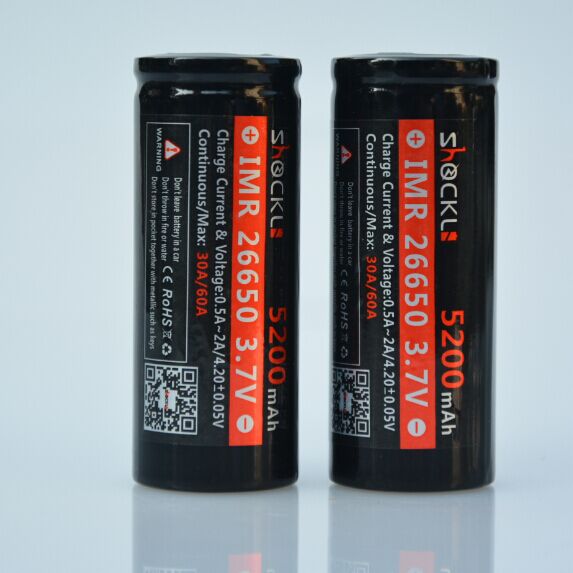

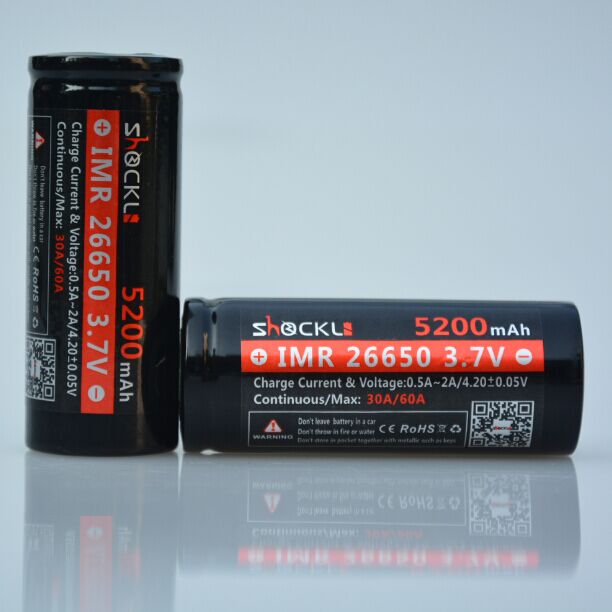

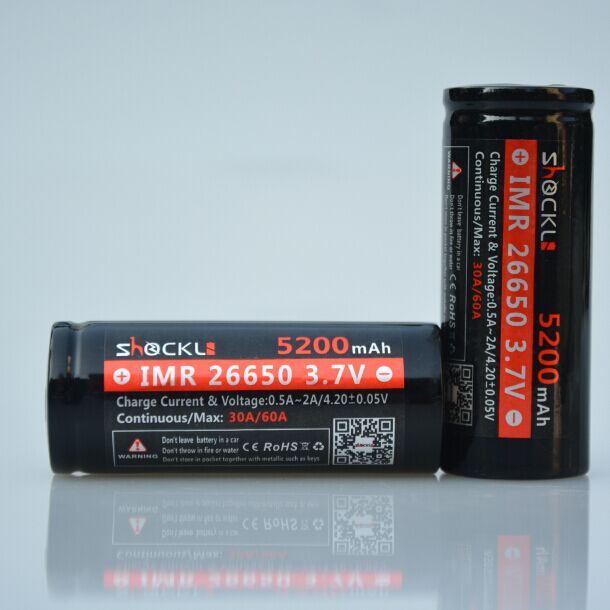

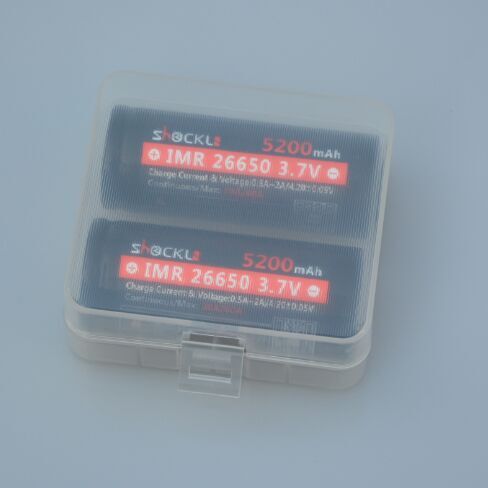

Shockli 26650 5200mah IMR battery Flat Top

Size(mm)

26.7±0.2mm(Diameter) x 67.2±0.5 mm(Length)

Weight(g)

95±2g

Nominal Voltage

3.7V

Nominal  Capacity

5200mah (1A  Discharge)

Discharge Cut-off voltage

2.75 V

Standard Charge

0.3 A~3A (Recommend 0.5 A~1.5A) /4.2V±0.05V

Maximum charge current

3A

Continuous

Discharge Current

20A

MAX

Discharge Current

30A

Initial Impedance

20 mW

Cycle Life

1000times: discharging capacity≥80%

Charging Time

Standard charge : 4.5hourscharge current:1.5A

Operating environment

Charging, 0°C ~ 45°C

Discharging, -20°C~60°C

Application

Electronic cigarette ,Flashlight



Warning!

In order to prevent damage to property or injury to yourself ,Please read the Warning  before using the battery .

You must keep the battery away from children and pets .

You must charge battery fully before first use,because the volt is low .



Don't throw the battery into water or fire.

Don't short circuit (+) and (-) terminals with metallic.

Don't mix the battery with different capacity or manufacturer.

Don't use when the battery wrapper is Damaged,please rewrapped.

Don't store the battery in pocket together with metallic such as keys, necklaces.

Don't leave, charge battery in car or similar place where temperature may be over 60℃.
