Tpye of Battery

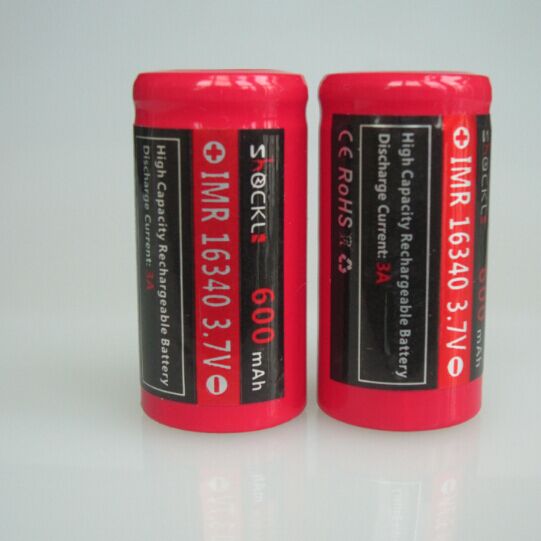

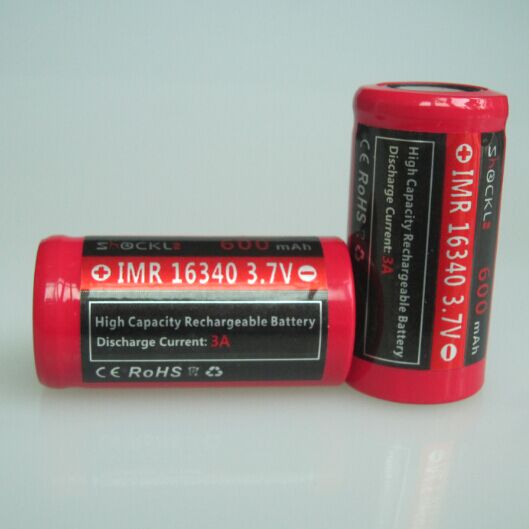

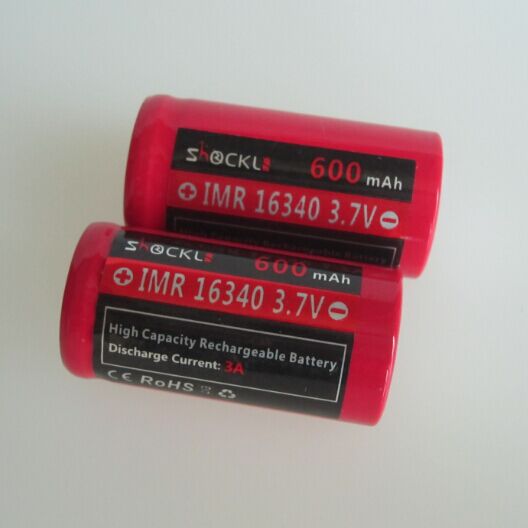

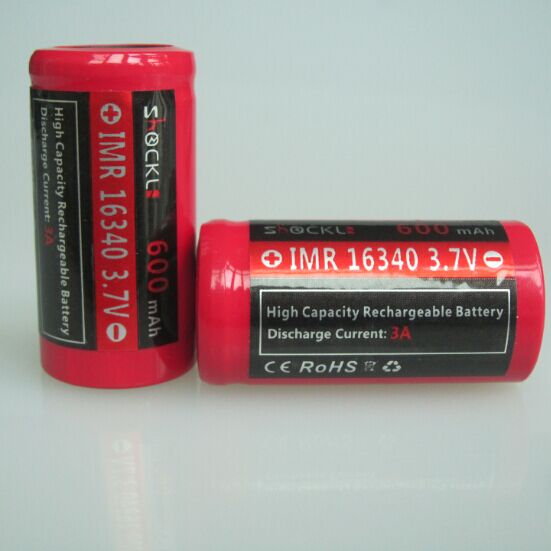

Shockli 16340 600mah IMR –Flat top

Size(mm)

16mm(Diameter) x 34mm(Length)

Weight(g)

22±1g

Nominal Voltage

3.7V

Nominal  Capacity

600mah (1A  Discharge)

Discharge Cut-off voltage

2.75 V

Standard Charge

0.5 A /4.2V±0.05V  (Recommend 0.5A)

Maximum charge current

1 A

Continuous

Discharge Current

3A

Initial Impedance

＜35 mW

Cycle Life

300times: discharging capacity≥60%

Charging Time

Standard charge : 3hours

Rapid charge : 1hours

Operating environment

Charging, 0°C ~ 45°C ;  65±20%RH

Discharging, -20°C~60°C ;  65±20%RH

Storage environment

Temp(-20°c -35°c)  / Relative humidity (45-75%)

Minimum Order Quantity

50 Piece

Application

Electronic cigarette , Flashlight
