Tpye of Battery

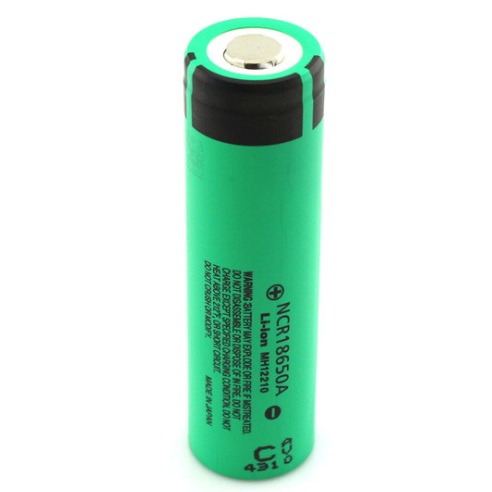

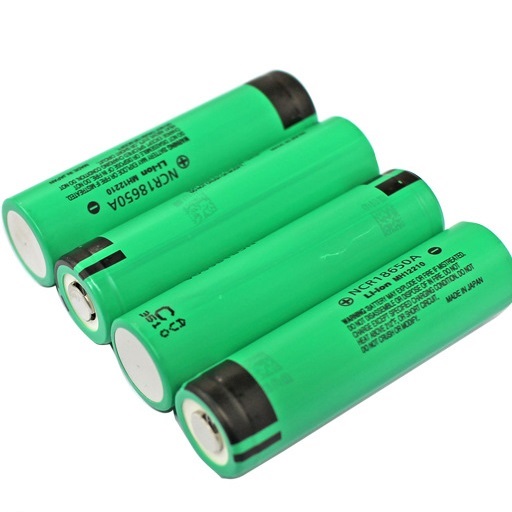

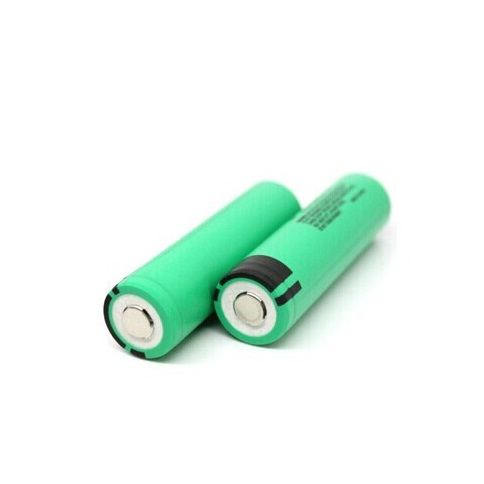

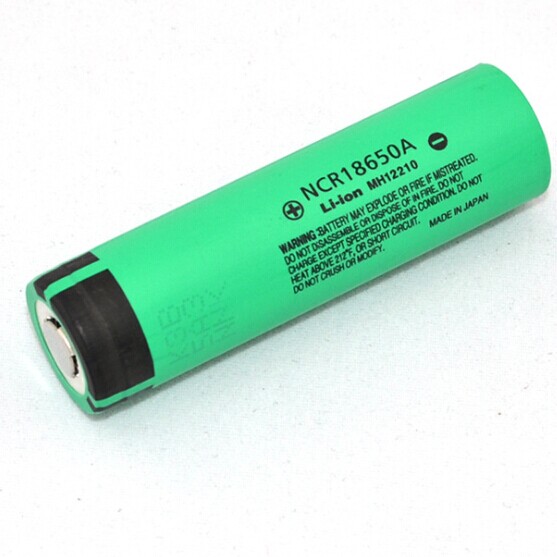

Panasonic NCR18650A

Size(mm)

18.2mm(Diameter) x 65.2mm(Length)

Capacity

Typical Capacity: 3100mAh, Minimum Capacity: 3050mAh

Voltage

3.6v

Discharging End Voltage

2.5V

Charging Current(Std.)

 1.625A

Charging Voltage

4.2±0.03V

Continuous Discharging Current(Max)

4.875A

Internal Resistance

Less than 100mΩ

Rechargeable times

300times Discharge and Charger cycles ,the capacity≥70%

Protection

Without protection board

Weight(g)

49g

Charging Time

4 hours

Operating environment

Charging, 0°C ~ 45°C

Discharging, -20°C~60°C

Storage environment

Temp(-20-35°c)  / Relative humidity (45-75%)

Minimum Order Quantity

10 Piece

Application

electrical tools ，flashlight，Electronic cigarette
