Tpye of Battery

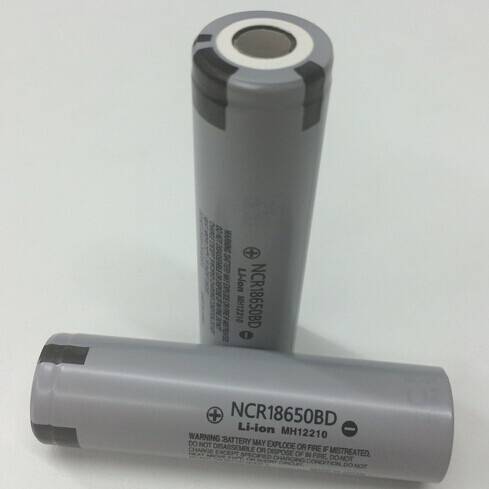

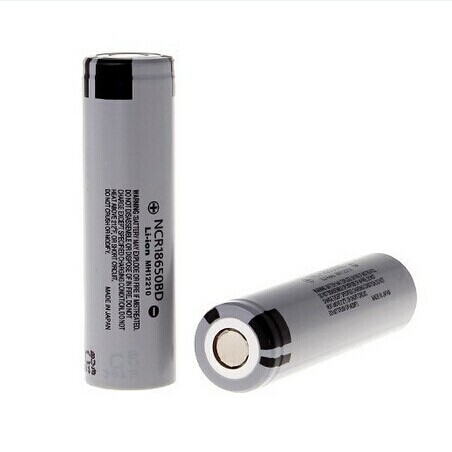

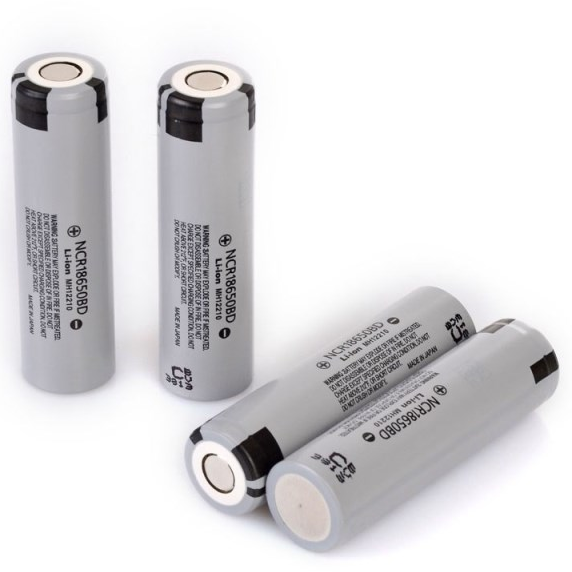

Panasonic NCR18650BD

Size(mm)

18.4mm(Diameter) x 65.4mm(Length)

Capacity

Typical Capacity: 3200mAh, Minimum Capacity: 3150mAh

Voltage

3.6v

Discharging End Voltage

2.5V

Charging Current(Std.)

 1.0A

Charging Voltage

4.2±0.03V

Continuous Discharging

Current

20A

Internal Resistance

Less than 40mΩ

Rechargeable times

300times Discharge and Charger cycles ,the capacity≥70%

Protection

Without protection board

Weight(g)

49g

Charging Time

4 hours

Operating environment

Charging, 0°C ~ 45°C

Discharging, -20°C~60°C

Storage environment

Temp(-20-35°c)  / Relative humidity (45-75%)

Minimum Order Quantity

10 Piece

Application

electrical tools ，flashlight，Electronic cigarette
